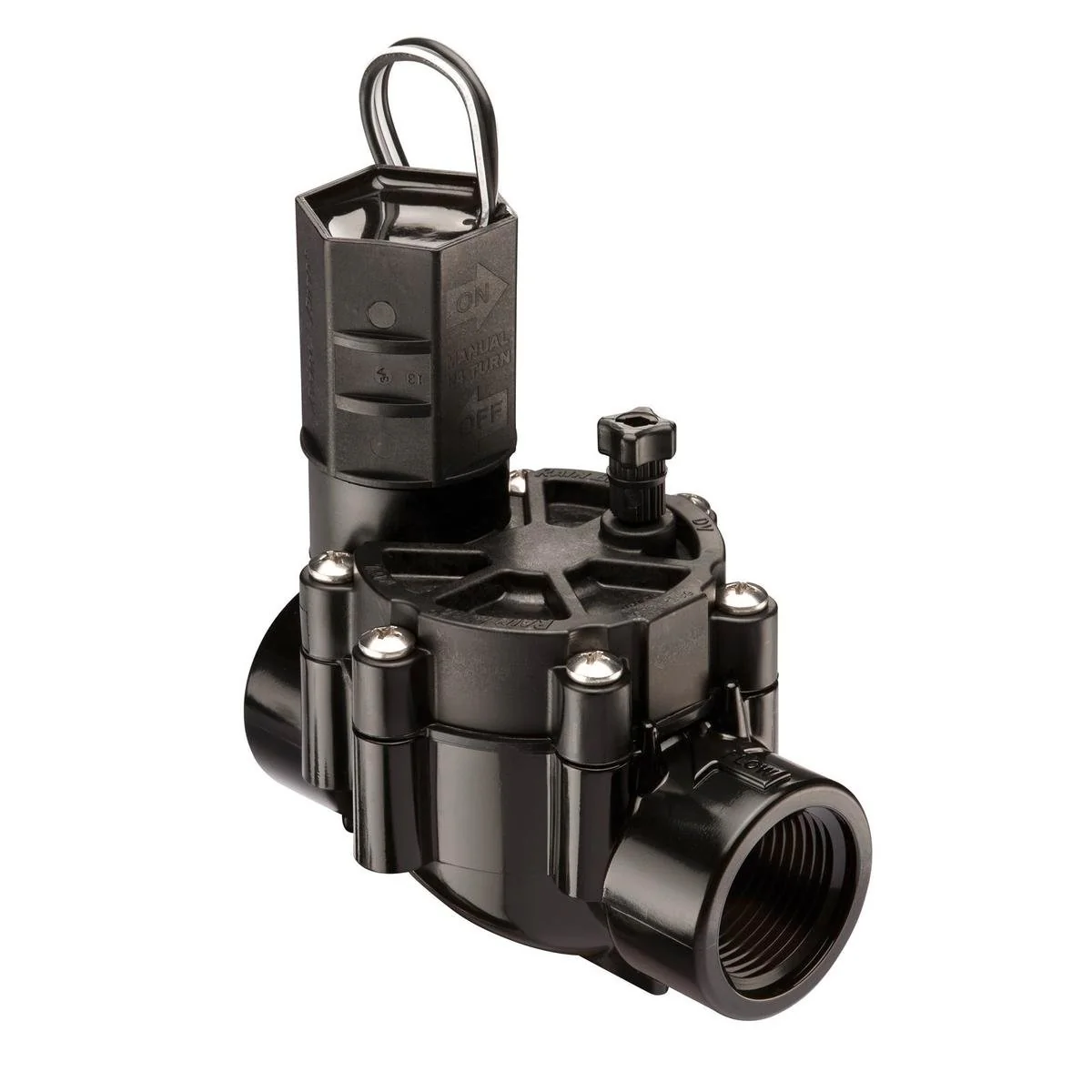

Rain Bird In-Line Valve - 25mm - BSP Threads - Automatic Operation

Rain Bird 25mm 1 in Line Valve with Bsp Threads is a reliable in-line irrigation valve designed for residential and light commercial applications, featuring a 25mm BSP threaded inlet and outlet.

This in-line valve is engineered for dependable operation with a non-clogging design that minimises pressure loss during installation and system start-up. It operates automatically on 24 VAC, 50/60 Hz, or can be manually activated using the bleed screw. The reverse flow design reduces stress on the diaphragm and prevents flooding in case of internal failure, ensuring water conservation. Compatible with standard sprinkler timers, this valve can be used with various watering devices, including Rain Bird spray heads and rotors. It is essential to install this valve in locations where backflow protection is required by local codes, and to flush the system of debris before start-up using the external bleed screw.

Features

• Reliable, non-clogging design for consistent performance
• Reverse flow design reduces diaphragm stress and prevents flooding
• In-line design minimises pressure loss during installation
• Compatible with any standard 24 VAC irrigation timer
• Suitable for use with various watering devices, including Rain Bird products

Specifications

Dimensions (W x H x D)	80mm x 120mm x 120mm
Weight	0.47kg
Model Number	B61114

The Rain Bird 25mm 1 in Line Valve with Bsp Threads is designed for efficient irrigation management.
