Original: $79.25
-70%$79.25
$23.77The Story

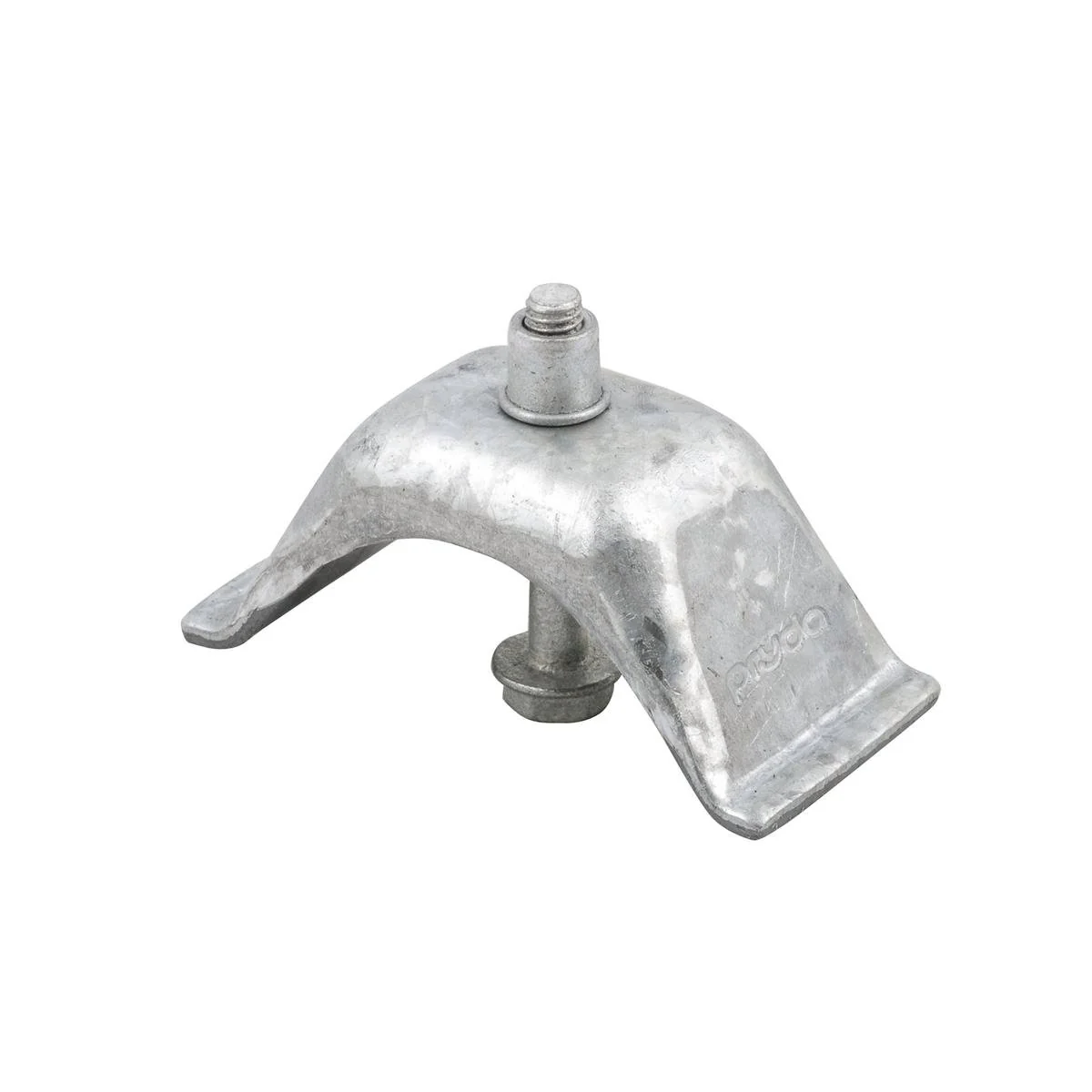

Pryda Strap Brace Tensioner and Bolt 30 Box is designed for bracing applications where traditional timber braces are impractical due to thickness or bending limitations.
The Pryda Strap Brace is a flat steel bracing solution suitable for roofs, walls, ceilings, and floors. It is particularly effective in situations where timber braces cannot be used, such as with exposed beams or rafters. The tensioning process is straightforward, achieved by driving a hex-head screw or turning a wing nut, which significantly reduces on-site labour time as studs do not require notching. This allows for the use of smaller, more cost-effective unnotched studs. The product complies with Australian Standards AS7120.1-2010, AS/NZS1170, AS4055-2006, AS1684.2-2010, and AS1684.3-2010 when installed according to Pryda’s Design Guidelines.
Features
- Ideal for applications where timber braces are not feasible.
- Quick and easy tensioning with hex-head screw or wing nut.
- Reduces on-site labour time by eliminating the need for notching studs.
- Flat strap design suitable for various structural applications.
- Complies with relevant Australian Standards for safety and performance.
Specifications
| Dimensions (W x H x D) | 14mm x 30mm x 17mm |
| Material | Z275 Zinc coated steel in 0.04mm thickness |
| Colour | Grey |
| Model Number | SBT30N |
The Pryda Strap Brace Tensioner and Bolt 30 Box is a reliable solution for structural bracing needs.
Description
Pryda Strap Brace Tensioner and Bolt 30 Box is designed for bracing applications where traditional timber braces are impractical due to thickness or bending limitations.
The Pryda Strap Brace is a flat steel bracing solution suitable for roofs, walls, ceilings, and floors. It is particularly effective in situations where timber braces cannot be used, such as with exposed beams or rafters. The tensioning process is straightforward, achieved by driving a hex-head screw or turning a wing nut, which significantly reduces on-site labour time as studs do not require notching. This allows for the use of smaller, more cost-effective unnotched studs. The product complies with Australian Standards AS7120.1-2010, AS/NZS1170, AS4055-2006, AS1684.2-2010, and AS1684.3-2010 when installed according to Pryda’s Design Guidelines.
Features
- Ideal for applications where timber braces are not feasible.
- Quick and easy tensioning with hex-head screw or wing nut.
- Reduces on-site labour time by eliminating the need for notching studs.
- Flat strap design suitable for various structural applications.
- Complies with relevant Australian Standards for safety and performance.
Specifications
| Dimensions (W x H x D) | 14mm x 30mm x 17mm |
| Material | Z275 Zinc coated steel in 0.04mm thickness |
| Colour | Grey |
| Model Number | SBT30N |
The Pryda Strap Brace Tensioner and Bolt 30 Box is a reliable solution for structural bracing needs.
