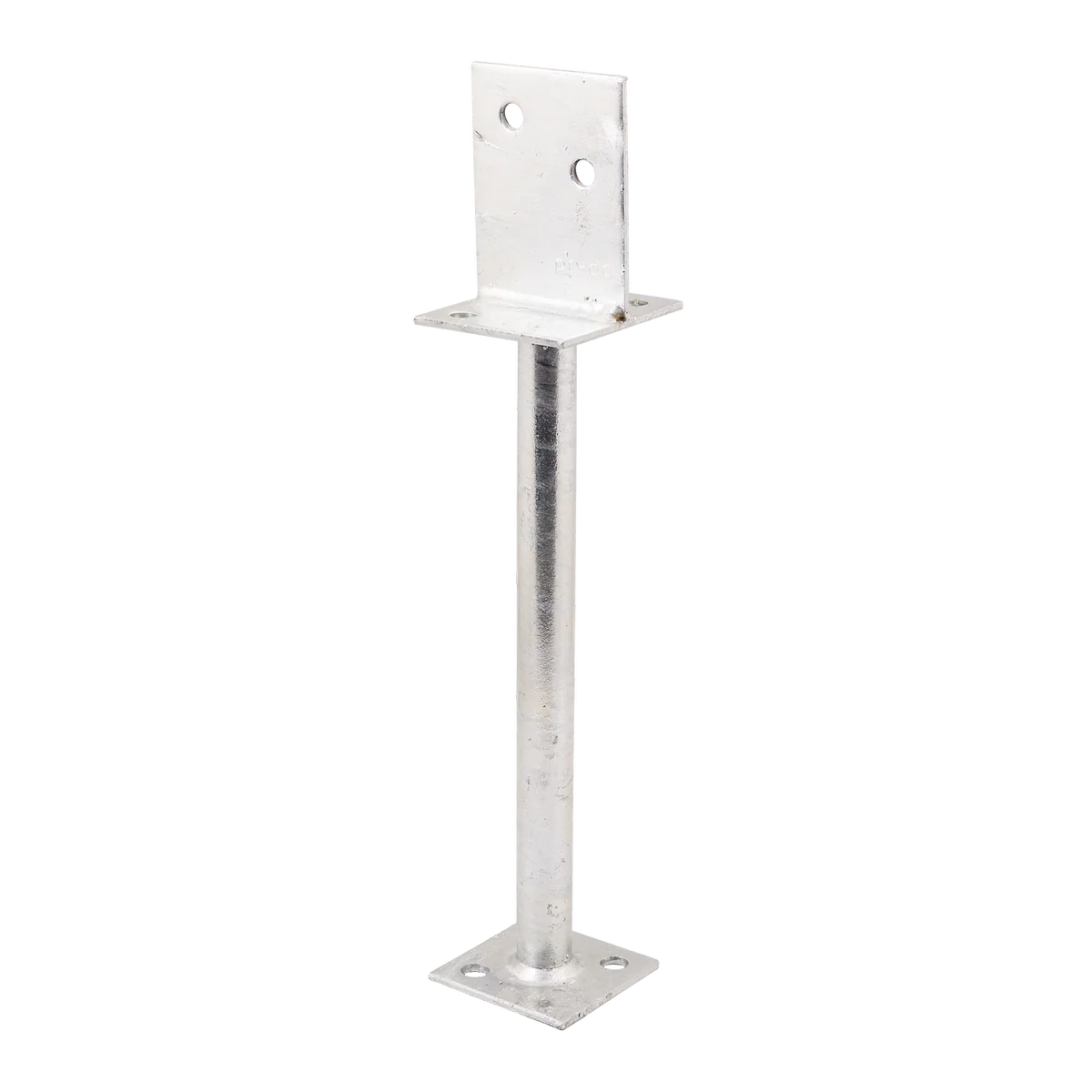

Pryda m10 300mm Centre Fix Post Anchor is a robust anchoring solution designed for securing posts to concrete structures, ensuring compliance with Australian standards.
This post anchor is engineered to conform to AS3660.1 - 2000 for termite protection, featuring fully welded joints and sealed stems within stirrups. The anchor's design allows for a discreet installation, with only the bolt heads and nuts visible. It is primarily intended for bolting to existing concrete but can also be cast-in with a maximum clearance of 75mm. The stem has a diameter of 25mm and a thickness of 2.0mm, while the stirrup thickness is 4mm, providing durability and strength for various applications.
Features
- Conforms to AS3660.1 - 2000 for termite protection
- Welded joints for enhanced structural integrity
- Sealed stems in stirrups for added termite protection
- Designed for hidden installation with only bolt heads visible
- Suitable for bolting to existing concrete or cast-in with a maximum clearance of 75mm
Specifications
| Dimensions (W x H x D) | 168mm x 300mm x 44mm |
| Weight | 1.06kg |
| Material | Hot Dip Galvanised Steel |
| Model Number | PSCF300/4 |
| Leg Length | 300mm |
| Stirrup Width | 90-150mm |
| Finish | Galvanised |
The Pryda m10 300mm Centre Fix Post Anchor is designed for reliable post anchoring solutions.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Pryda m10 300mm Centre Fix Post Anchor is a robust anchoring solution designed for securing posts to concrete structures, ensuring compliance with Australian standards.
This post anchor is engineered to conform to AS3660.1 - 2000 for termite protection, featuring fully welded joints and sealed stems within stirrups. The anchor's design allows for a discreet installation, with only the bolt heads and nuts visible. It is primarily intended for bolting to existing concrete but can also be cast-in with a maximum clearance of 75mm. The stem has a diameter of 25mm and a thickness of 2.0mm, while the stirrup thickness is 4mm, providing durability and strength for various applications.
Features
- Conforms to AS3660.1 - 2000 for termite protection
- Welded joints for enhanced structural integrity
- Sealed stems in stirrups for added termite protection
- Designed for hidden installation with only bolt heads visible
- Suitable for bolting to existing concrete or cast-in with a maximum clearance of 75mm
Specifications
| Dimensions (W x H x D) | 168mm x 300mm x 44mm |
| Weight | 1.06kg |
| Material | Hot Dip Galvanised Steel |
| Model Number | PSCF300/4 |
| Leg Length | 300mm |
| Stirrup Width | 90-150mm |
| Finish | Galvanised |
The Pryda m10 300mm Centre Fix Post Anchor is designed for reliable post anchoring solutions.
