$4.27The Story

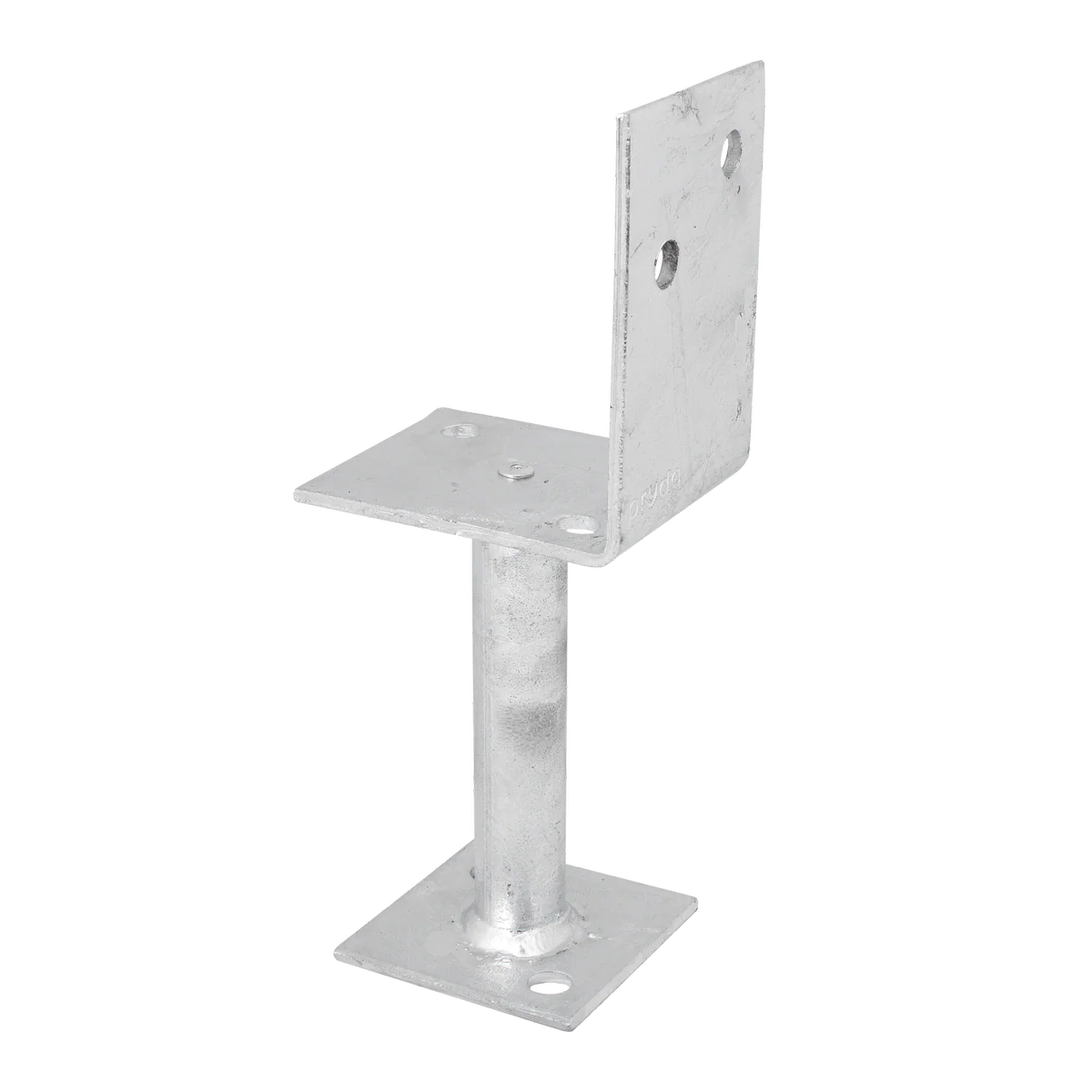

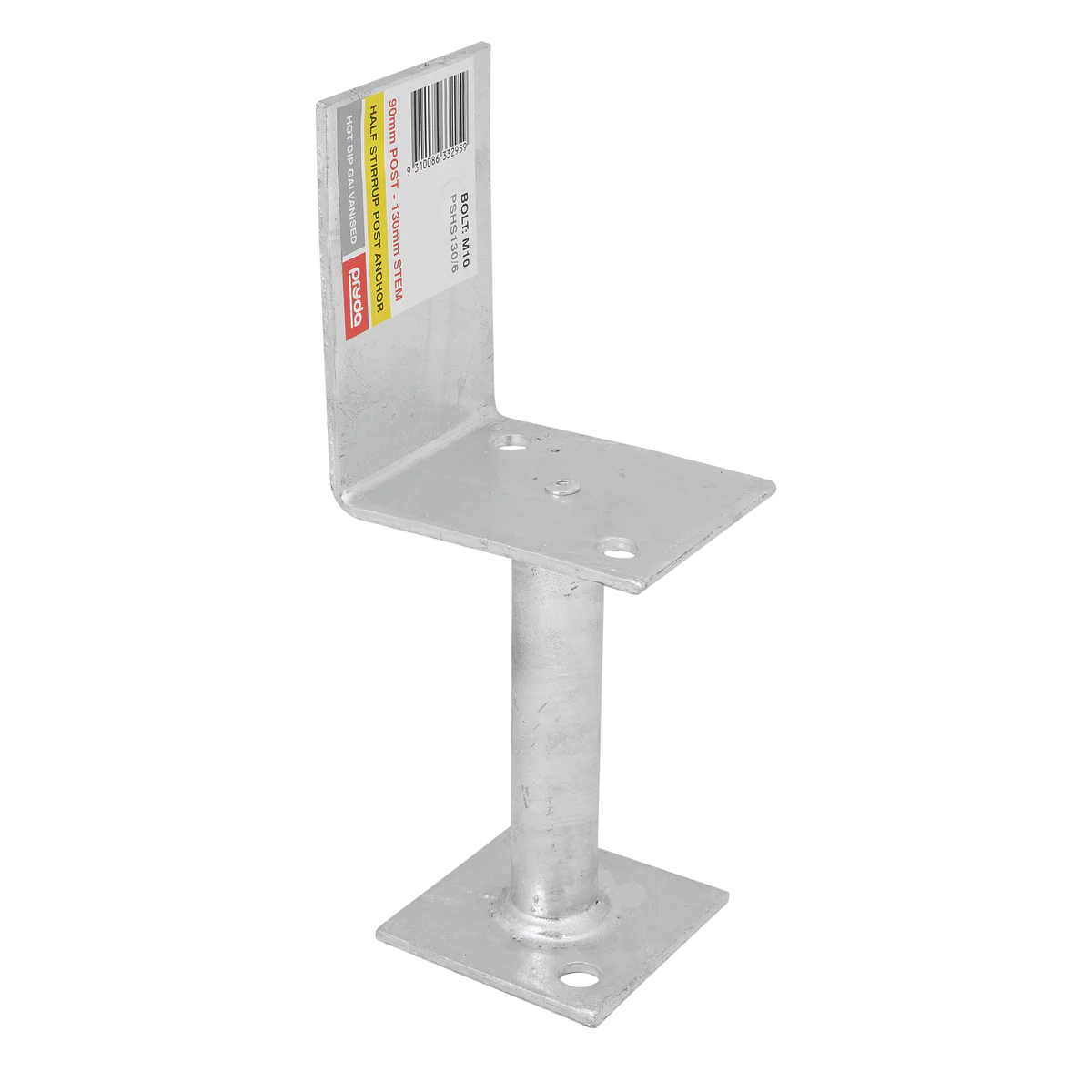

Pryda 130mm m10 Half Stirrup Post Anchor is a robust anchoring solution designed for securing posts to existing concrete or for cast-in applications.
This half stirrup post anchor is engineered to comply with Australian standards, specifically AS3660.1 - 2000 for termite protection. It features welded joints and a stem with a diameter of 25mm and a thickness of 2.0mm, ensuring durability and reliability. The stirrups are sealed for termite protection in accordance with AS1397-2001, and the stirrup thickness is 4mm. This anchor is particularly suited for installations where the post is positioned against a wall or step, allowing for bolting from one side only. It is designed to meet the requirements of the Australian National Construction Code (NCC).
Features
- Conforms to AS3660.1 - 2000 for termite protection
- Welded joints for enhanced strength
- Sealed stems for termite protection
- Half stirrup design for bolting to existing concrete
- Minimum clearance of 75mm for cast-in applications
Specifications
| Dimensions (W x H x D) | 130mm x 282mm x 36mm |
| Weight | 0.85kg |
| Material | Hot Dip Galvanised Steel |
| Colour | Grey |
| Model Number | PSHS130/6 |
| Leg Length | 130mm |
| Bolt Hole Size | M10 |
| Stirrup Width | 90mm |
The Pryda 130mm m10 Half Stirrup Post Anchor is a reliable choice for securing posts in various construction applications.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Pryda 130mm m10 Half Stirrup Post Anchor is a robust anchoring solution designed for securing posts to existing concrete or for cast-in applications.
This half stirrup post anchor is engineered to comply with Australian standards, specifically AS3660.1 - 2000 for termite protection. It features welded joints and a stem with a diameter of 25mm and a thickness of 2.0mm, ensuring durability and reliability. The stirrups are sealed for termite protection in accordance with AS1397-2001, and the stirrup thickness is 4mm. This anchor is particularly suited for installations where the post is positioned against a wall or step, allowing for bolting from one side only. It is designed to meet the requirements of the Australian National Construction Code (NCC).
Features
- Conforms to AS3660.1 - 2000 for termite protection
- Welded joints for enhanced strength
- Sealed stems for termite protection
- Half stirrup design for bolting to existing concrete
- Minimum clearance of 75mm for cast-in applications
Specifications
| Dimensions (W x H x D) | 130mm x 282mm x 36mm |
| Weight | 0.85kg |
| Material | Hot Dip Galvanised Steel |
| Colour | Grey |
| Model Number | PSHS130/6 |
| Leg Length | 130mm |
| Bolt Hole Size | M10 |
| Stirrup Width | 90mm |
The Pryda 130mm m10 Half Stirrup Post Anchor is a reliable choice for securing posts in various construction applications.
