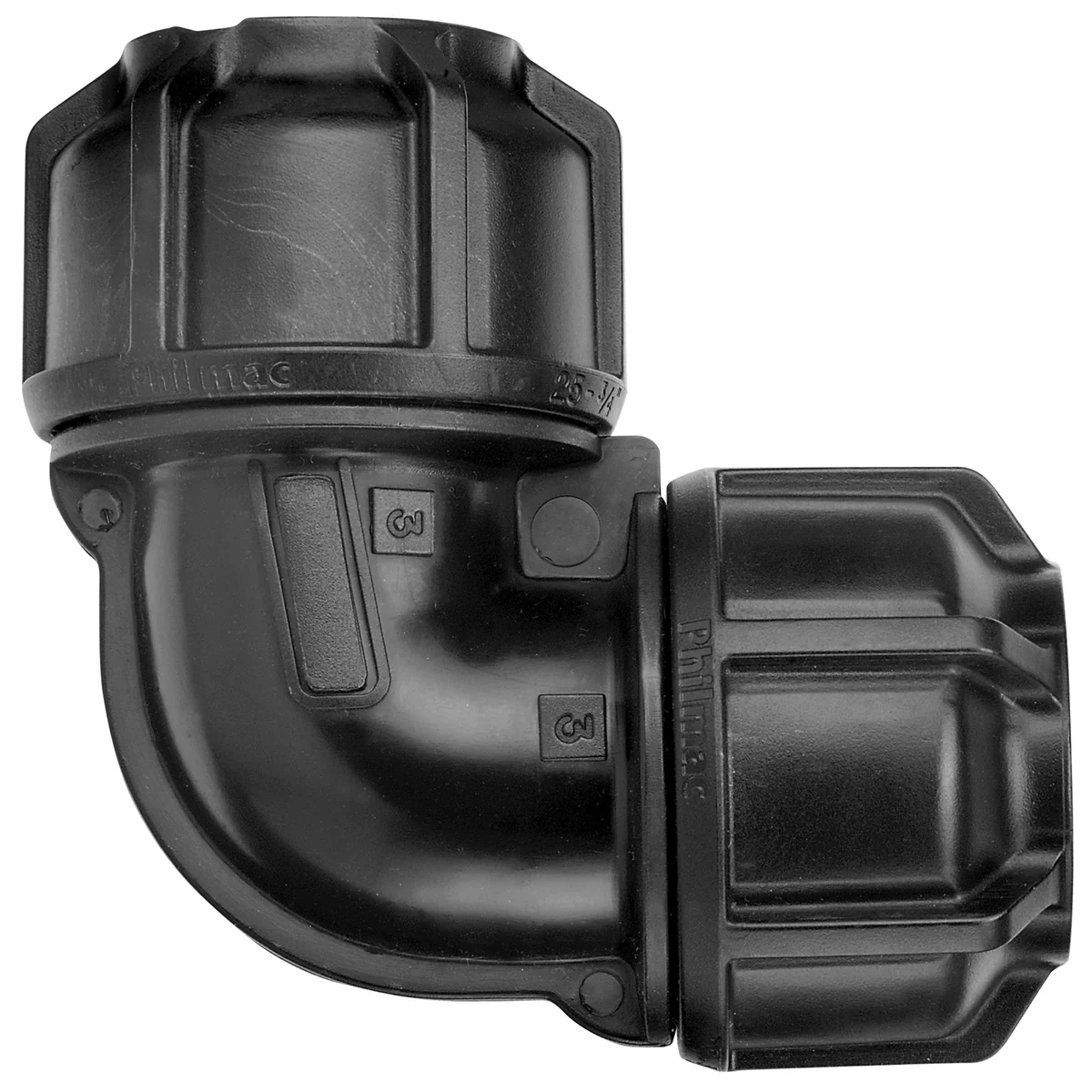

Philmac 25mm Poly Pipe Elbow - Polypropylene - 90 Degree - PN16

Philmac 25mm Poly Pipe Elbow - Polypropylene - 90 Degree - PN16 is a robust fitting designed for use with Blue Line Poly Pipe, ensuring reliable connections in underground applications.

The Philmac 25mm Poly Pipe Elbow is engineered for durability and ease of use, featuring a compact design that incorporates Slide and Tighten technology. This innovative fitting allows for easy disassembly, with no loose components, as the collet and seal remain captive in the body when the nut is removed. The 3G Metric plastic compression fitting is compatible with Rural, 2G Metric, and 3G Metric connection components, making it versatile for various applications. Designed and manufactured in Australia, this fitting supports a maximum working pressure of PN16, ensuring it meets the demands of underground installations.

Features

• No loose components; collet and seal remain captive when the nut is removed.
• Incorporates Slide and Tighten technology for ease of use.
• Compact and robust PN16 fitting suitable for underground applications.
• Easy disassembly for maintenance and adjustments.
• Interchangeable with Rural, 2G Metric, and 3G Metric connection components.

Specifications

Dimensions (W x H x D)	100mm x 100mm x 100mm
Material	Polypropylene Body, Acetal Nuts
Colour	Black
Model Number	70753300
Maximum Working Pressure	1600 kPa
Bend Degree	90
Fitting Size	25

The Philmac 25mm Poly Pipe Elbow - Polypropylene - 90 Degree - PN16 is designed for reliable underground connections.
