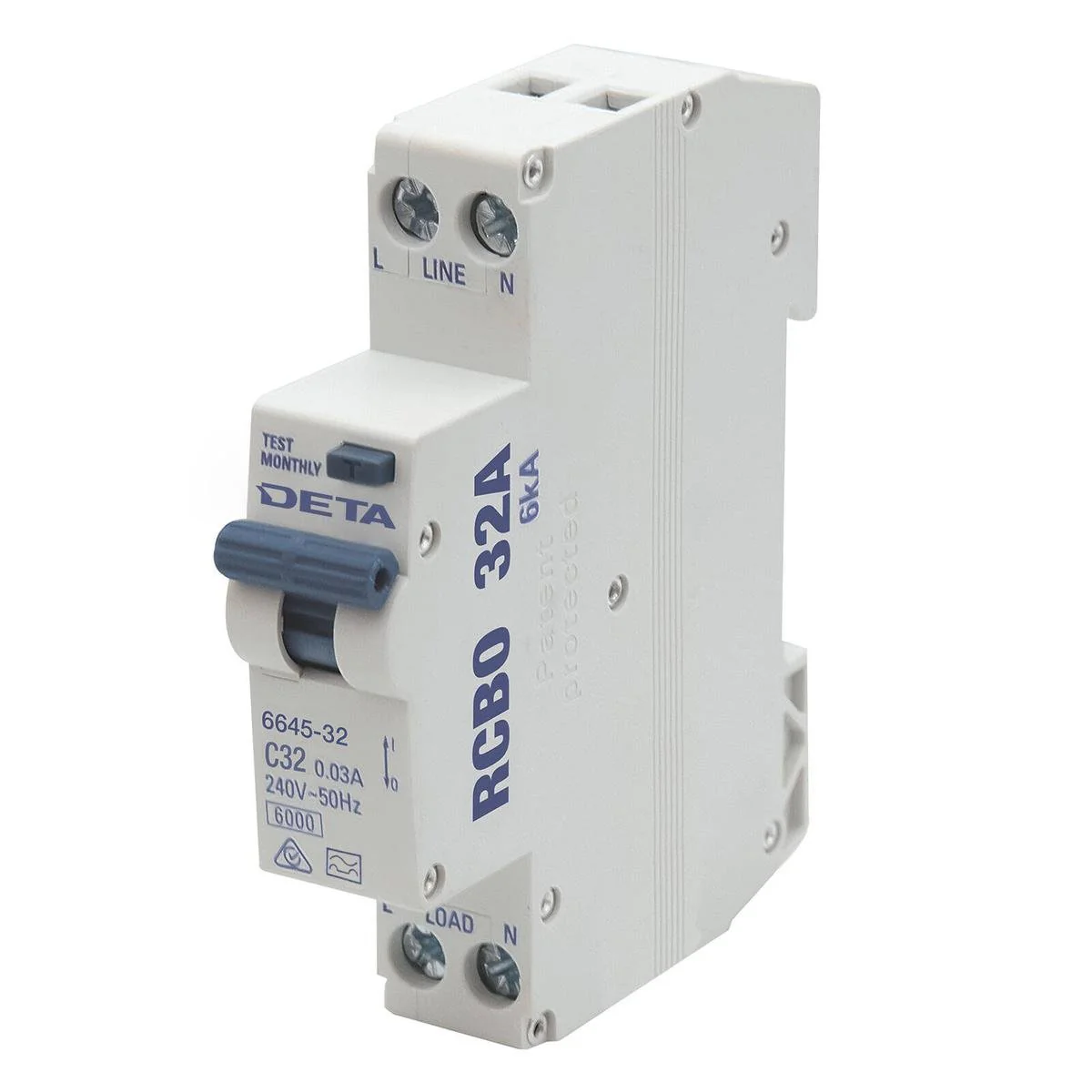

Deta 32a Residual Circuit Breaker with Overload Protection is designed for effective protection against earth faults, overloads, and short circuits in various installations.
The Deta 32A Residual Circuit Breaker with Overload Protection (RCBO) is suitable for both residential and industrial applications. It features a short circuit capacity rating of 6kA and a 30mA type A residual tripping current, ensuring reliable protection against earth fault and leakage currents. This single-phase device is compliant with AS/NZS 61009 standards and is ESV listed. With a compact design of 18mm width, it can be easily mounted onto a 35mm DIN rail, making it ideal for flush or surface-mounted switchboards and enclosures.
Features
- Short circuit capacity rating of 6kA
- 30mA type A residual tripping current
- Suitable for residential and industrial installations
- Protects against earth fault, leakage current, overload, and short circuit
- Easy mounting onto 35mm DIN rail
Specifications
| Dimensions (W x H x D) | 18mm x 82mm x 75mm |
| Weight | 0.3kg |
| Material | Nylon PA66 |
| Model Number | 6645-32b |
| Maximum Voltage | 240 volts |
| Maximum Amperage | 32 amps |
The Deta 32a Residual Circuit Breaker with Overload Protection is an essential component for electrical safety.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Deta 32a Residual Circuit Breaker with Overload Protection is designed for effective protection against earth faults, overloads, and short circuits in various installations.
The Deta 32A Residual Circuit Breaker with Overload Protection (RCBO) is suitable for both residential and industrial applications. It features a short circuit capacity rating of 6kA and a 30mA type A residual tripping current, ensuring reliable protection against earth fault and leakage currents. This single-phase device is compliant with AS/NZS 61009 standards and is ESV listed. With a compact design of 18mm width, it can be easily mounted onto a 35mm DIN rail, making it ideal for flush or surface-mounted switchboards and enclosures.
Features
- Short circuit capacity rating of 6kA
- 30mA type A residual tripping current
- Suitable for residential and industrial installations
- Protects against earth fault, leakage current, overload, and short circuit
- Easy mounting onto 35mm DIN rail
Specifications
| Dimensions (W x H x D) | 18mm x 82mm x 75mm |
| Weight | 0.3kg |
| Material | Nylon PA66 |
| Model Number | 6645-32b |
| Maximum Voltage | 240 volts |
| Maximum Amperage | 32 amps |
The Deta 32a Residual Circuit Breaker with Overload Protection is an essential component for electrical safety.
