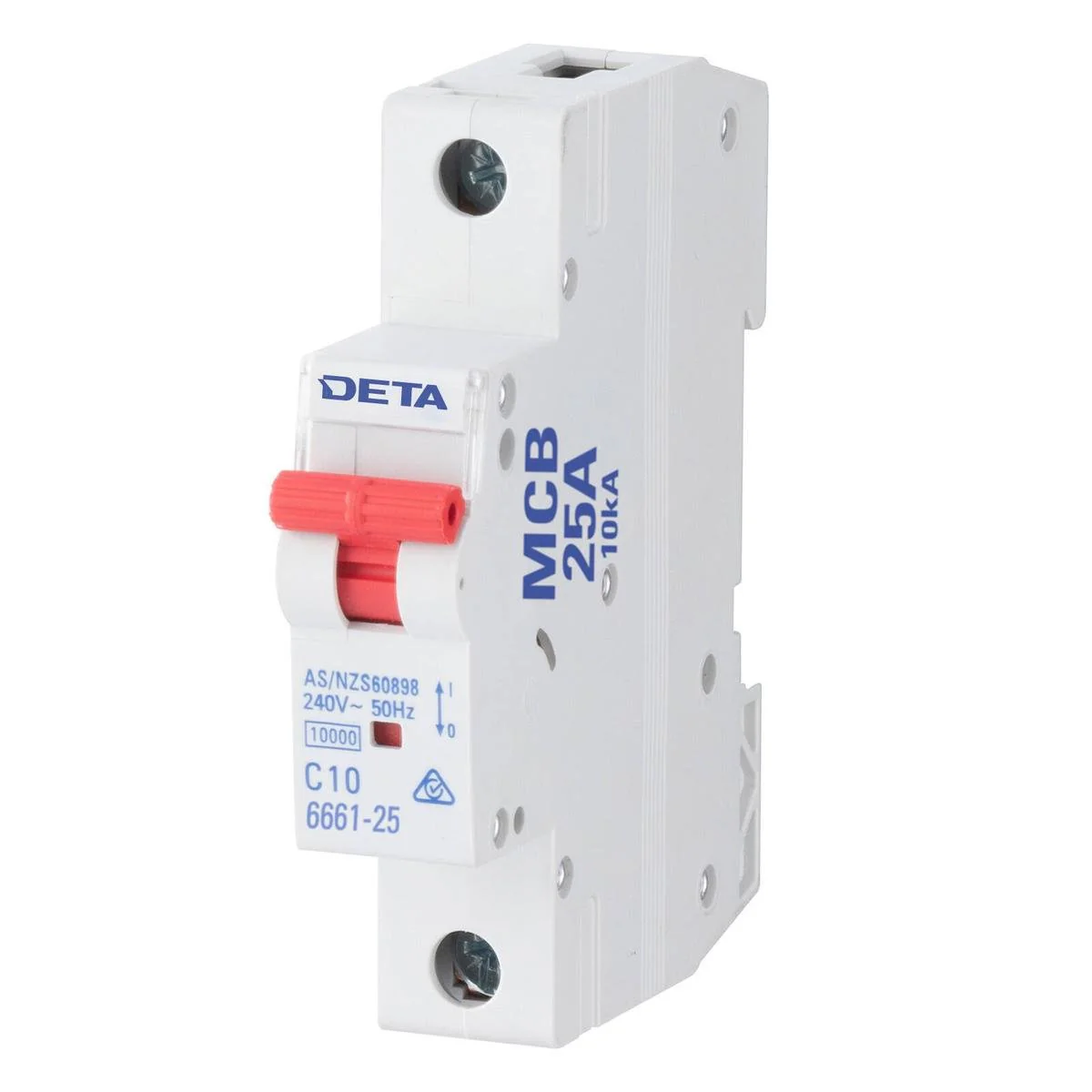

Deta 25A Miniature Circuit Breaker - 10kA Short Circuit Capacity - 1 Pole - 18mm

Deta 25a Miniature Circuit Breaker is a reliable electrical component designed to protect against overload and short circuit conditions in various applications.

The Deta 25A Miniature Circuit Breaker (MCB) is engineered to safeguard electrical circuits from overload and short circuit incidents. With a short circuit capacity of 10kA, this one-pole breaker is 18mm wide and is designed for easy mounting onto 35mm DIN rails. It is suitable for use in both flush and surface-mounted switchboards or enclosures, making it a versatile choice for residential and commercial electrical systems. The contact position indicator provides clear visibility of the breaker's status, ensuring efficient monitoring and maintenance.

Features

• 10kA short circuit capacity
• Contact position indicator for easy status monitoring
• Easy mounting onto 35mm DIN rail
• Protection against overload and short circuit
• One pole design (18mm wide)

Specifications

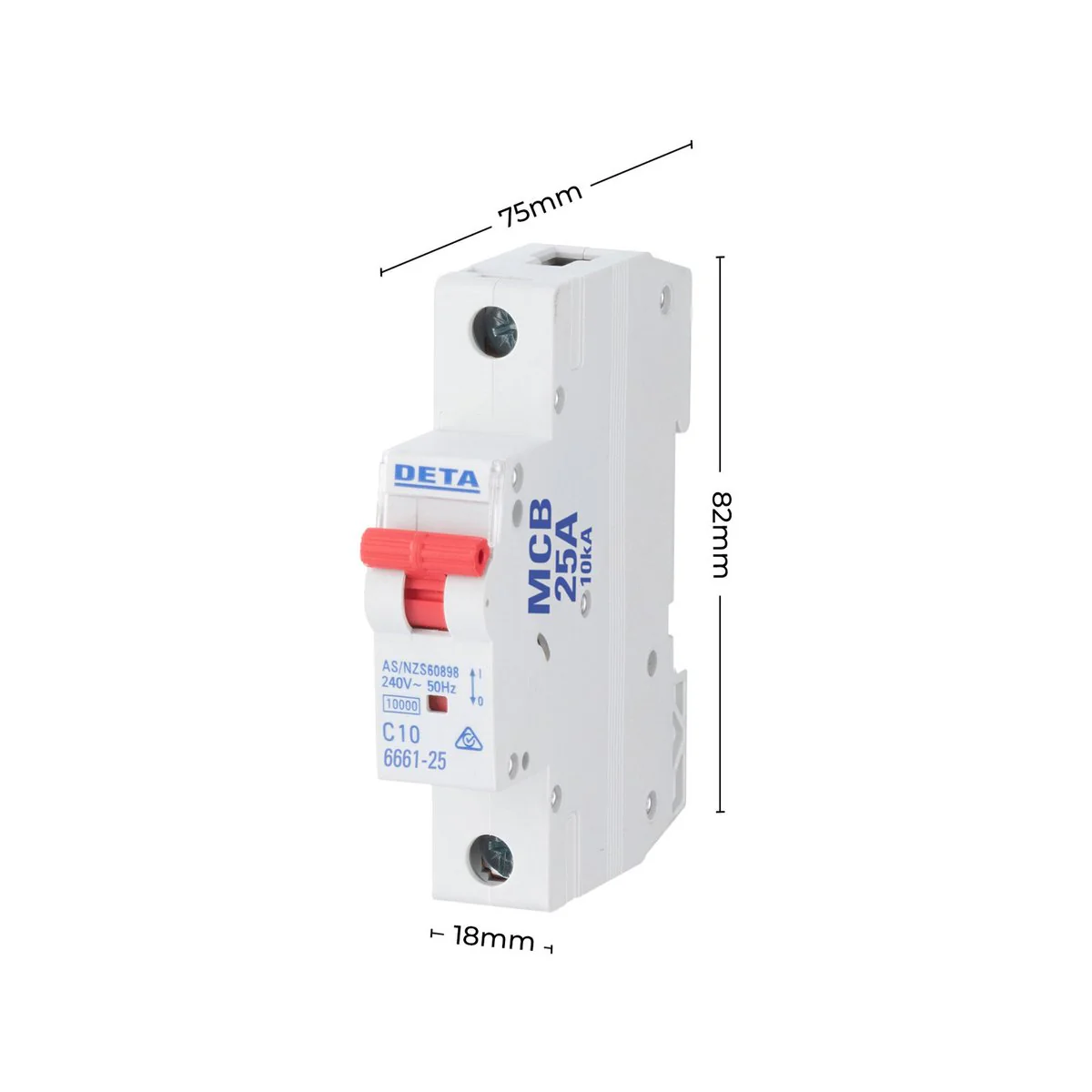

Dimensions (W x H x D)	18mm x 82mm x 75mm
Weight	0.1kg
Material	Nylon
Model Number	6661-25B
Maximum Voltage (volts)	240V
Maximum Amperage (amps)	25A

The Deta 25a Miniature Circuit Breaker is essential for ensuring circuit protection in electrical installations.
